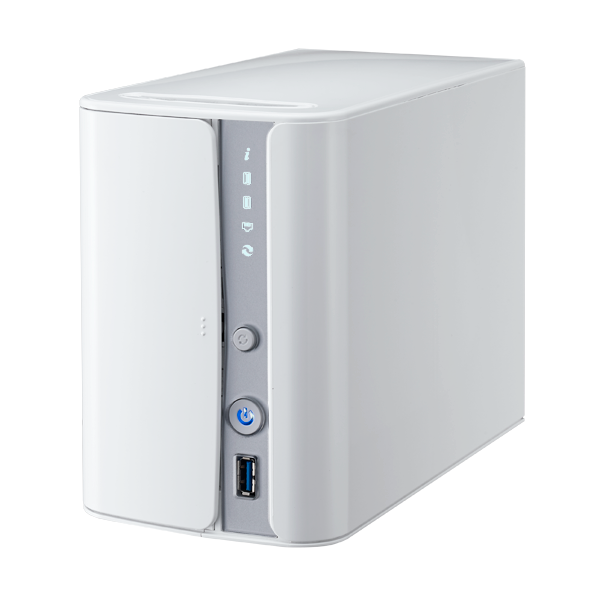

Thiết bị lưu trữ NAS N2520



1. Hardware Platform

Item Spec
Processor Intel® Atom™ SoC CE5315 Dual Core 1.2GHz
System Memory 1GB DDR3
LAN Interface (PCI-e) RJ-45x1: 10/100/1000 BASE-TX Auto MDI/MDI-X
WOL supported
USB Interface USB 2.0 host port x2 (back x2)
USB 3.0 host port x1 (front x1)
HDMI Output HDMI port (back x1)
Audio Output SPDIF (back x1)
Disk Interface 2 x SATA for internal
Power Supply 40W external power adaptor
Power Management Auto power on after shutdown due to power loss
Buttons Power button
USB copy button
Reset button
Environment Temperature: 5°C to 40°C
Humidity: 0 ~ 80 % R.H. (Non-condensing)
Chassis 2bays Tower
Dimensions (HxWxD) 166 x 114 x 210 (mm)
Certificates CE/FCC/C-Tick/VCCI/BSMI
RoHS
WEEE


2. Software Functions

RAID
RAID Modes RAID 0, 1 and JBOD
Auto-rebuild Supported
Hot-swap Supported
RAID Volume Encryption AES256bit
Disk
Power Management Available spin-down on idle setting
Bad Block Scanning Supported
SMART Info Supported
SMART Test Supported
Disk Roaming Supports volume-based roaming to other Thecus NAS
Network
Configuration Fixed IP address, dynamic IP address
Transport Protocols TCP/IP, AppleTalk
File Protocols SMB/CIFS, HTTP/HTTPS, FTP, AFP
TCP/IP IPV6 & IPV4
DDNS Supported
SSH Supported
UPnP Supported
UPnP Port forwarding Supported
System status
System Monitor Monitoring CPU, memory, network utilization and protocols access user count
Syslog Management Send syslog to assigned location
Act as syslog server to receive log info from other systems
Data Access
Client OS Support Windows XP and after
Windows Server 2003 and after
Mac OS X
FTP Built-in FTP server with bandwidth control
Secure FTP Built-in secure FTP server with bandwidth control
Download Manager BT Transmission
Printer Server (IPP) Supports USB printers
Supports a wide range of IPP printers
Client can manage print tasks (list/delete) via web user interface
Data Backup
Client Incremental Data Backup Acronis True Image (OEM version)
Client System Disaster Recovery Acronis True Image (OEM version)
Data Burn Create files to ISO image and burn to optical disc
Create files to ISO image
Read ISO image from optical disc and write to NAS
Mac OS X Time Machine Supported
Data Guard Remote Backup/Local Backup (iSCSI not supported for N2520)
Power Management
Scheduled Power On/Off Supported
Volume Management
File System EXT4
Multimedia Support
iTunes Server Supports AAC, MP3 w/ID3 tag and WAV
Piczza!™ Photo Server (via module) Supports GIF, JPG (JPEG), BMP and PNG
Supports EXIF display
Supports slide shows
Right click to publish on social network like FB
Media Server Supports uPnP AV streaming protocol (via Twonkymedia module)
User Authentication
Local User Supports built-in user accounts
Local Group Supports built-in user groups
Cloud Backup
DropBox Supported
ElephantDriver Supported
Amazon S3 Supported
File System
Type Journaling File System
Language Support Unicode Support
Authorization (ACL) “Read”, “write”, or “deny” privileges to individual users or groups in folders and sub-folders
User Quota Supported
Administration
User Interface Web-based user interface supports English, Traditional Chinese, Simplified Chinese, Japanese, Korean, French, German, Italian, Spanish, Russian, Polish, Portuguese, Turkish and Czech.
Utility Program (Intelligent NAS) MS Windows Setup Wizard
Supports Windows XP and after
Windows Server 2003 and after
Mac OS X Setup Wizard
Email Notifications Sends system messages via email to the system administrator
DDNS Support one free DDNS registration (ex. xxx.thecus.ddns.com)
UPnP and Port forwarding Support auto setting in Intranet environment
Zero Installation Go through defined URL for auto install (Intelligent NAS)
Windows Utility (Intelligent NAS) Auto create desktop icon with designate application
1. Piczza
2. Download station
3. File manager
Mobile Applications (iOS/Android)
Thecus Dashboard Mobile monitoring and administration (via module)
T-OnTheGo™ (iOS) Upload, download and stream multimedia
Data Security
Virus Scan Supports McAfee®
Local Display
HDMI/Audio Supported
DVB-T Supported
Others
Recycle Bin Supported
Web Disk Supported
UPS Supported
