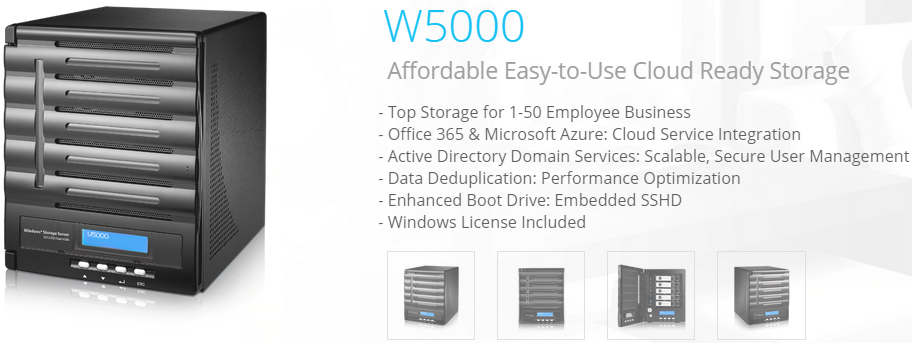

Windown Nas Thecus W5000

Windows Storage Server Comparison Chart
  Workgroup Standard Essentials
Ability to join a domain Yes Yes Yes
Data Deduplication No Yes Yes
BranchCache- Hosted Cache NO Yes Yes
Virtualization No Hyper-V Yes (2 VMs) No Hyper-V
Failover Clustering No Yes No
Networking infrastructure
(including DNS, DHCP, and WINS)
Yes Yes Yes
Windows Server Essentials Experience No No Yes
Active Directory
(Domain Controller, Certificate Services,
Federation Services, Rights Management)
No No Yes

Hardware Platform
Processor Intel® Atom™ D2550 (1.86GHz Dual Core)
System Memory 4GB DDR3
Embedded Boot Drive Seagate SSHD
Drive Bays 5
Form Factors Supported 2.5" / 3.5"
LAN Interface RJ-45x2: 10/100/1000 BASE-TX Auto MDI/MDI-X
WOL supported
USB Interface USB 2.0 host port x4 (back x4)
USB 3.0 host port x1 (front x1)
LCM Module LCM display
4 buttons (ENTER, ESC, UP, DOWN)
HDMI Output HDMI port (back x1)
VGA Output VGA port (back x1)
Audio MIC input, Line input, Audio output
Disk Interface 5 x SATA for internal
1 x eSATA for external
Power Supply 200W Power Supply
USB UPS Supported
System Clock Battery-backed up system clock
Power Management Auto power on after shutdown due to power loss
Buzzer Adjustable frequency alarm
Buttons Power button
LCM button
Environment Temperature: 5°C to 40°C
Humidity: 0 ~ 80 % R.H. (Non-condensing)
Chassis Tower Metal Chassis
Dimensions (HxWxD) 230 x 190 x 240 (mm)/ 9.06 x7.48 x 9.45 (in)
Weight (Kgs) 7.2
Software Functions Windows Storage Server 2012 R2 Essentials
File System Native NTFS support, FAT32, EFS, ReFS
Disk Management Data Deduplication
Storage Spaces:
- Create pools of storage using industry standard hard disk drives
- Enables data redundancy with mirroring or parity
NTFS Online Scan and Repair (CHKDSK) Intelligently repairs unexpected corrupted data
Network Support Protocols : IPV6 / Multiple NICs / DNS / DHCP & WINS
Support for multiple subnets / Multiple IP addresses
File and Block Storage Protocol Support File : SMB (1.0, 2.0, 2.1, 3.0, 3.01), NFS (v2, v3, v4.1)
Block : iSCSI Target Server, iSCSI, SATA, and USB
Directory Services / User Management Seamless Active Directory integration with any existing Active Directory Domain
Authentication and authorization
Domain Controller, Certificate Services, Federation Services, Rights Management
Windows Client Integration via Launch Pad Agent deployed on client, one click connection to NAS appliance
Performance NIC Teaming: Aggregates bandwidth of multiple NICs
SMB Multi-channel: Multiple transport sessions in a single NIC
Secure Remote Access Secure Remote Desktop Services with Encryption and Authentication
Remote file access via FTP/FTPS
Remote Web Access via HTTPS
Licensing Client support for up to 50 users or devices
No Windows Server Client Access Licenses ( CALs) required
Single processor socket / Up to 4 GB of memory
Printer Server Support / FAX and Scan Local printer connection: Full Windows print services support
Distributed Scan Server: Print Server and Document Services
Health Reporting / Notifications Integrated health monitoring and reporting
- Send health report to chosen email address on a customizable schedule
Media Pack for Streaming Stream music, videos, and pictures with the included Windows Server Essentials Media Pack
Global Language Pack 36 Interfaces Available
